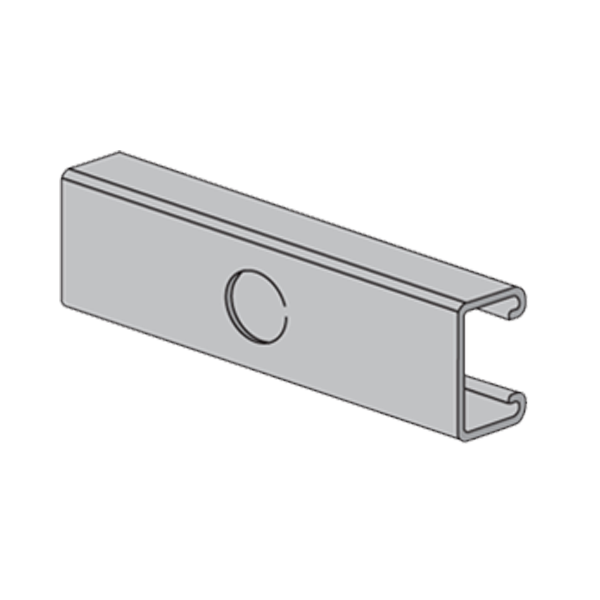

Channel CS-152-KO

DEFAULT SPECIFICATIONS

  • 12 Gauge Channel with Knock Outs 7/8" on 6" Centers
  • 1" X 1-5/8"
  • wt./100 ft. - 149#



FEATURES

CS-152-KO strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross section of uniform dimensions within a tolerance of plus or minus 0.015", on outside dimensions.

Channel CS-152-KO

Description:
