Direct Tension Indicators Washer

Technical specifications

  • Materials: 50#/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: M16-M36



FEATURES



Direct Tension Indicators Washer

Description:

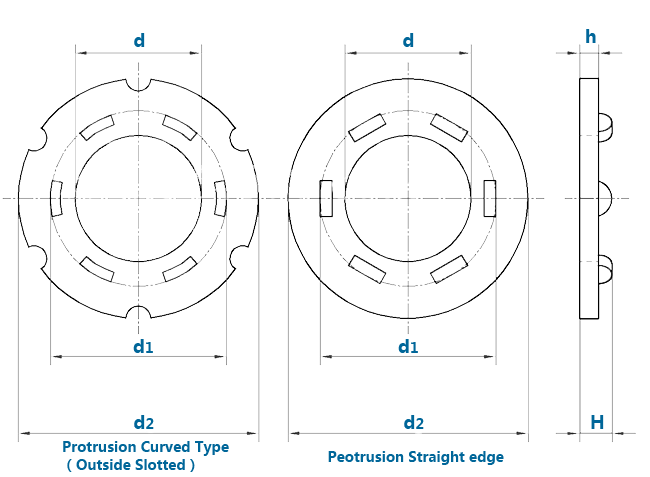

Size d d1 D2 n h H
  Min Max Max Min 8.8 Max 8.8 Min 10.9 Max 10.9 Number of Protrusions 8.8 Number of Protrusions 10.9 Min 8.8 Min 12.9 Max 8.8 Max 10.9
M16 16.75 16.85 25.0 35.20 36.80 35.20 36.80 4 4 3.2 3.6 5.5 6.0
M20 20.95 21.05 29.0 44.00 46.00 44.00 46.00 5 6 3.6 3.6 6.0 6.0
M22 23.05 23.15 33.0 48.40 50.60 48.40 50.60 5 6 3.6 4.0 6.0 7.0
M24 25.15 25.25 38.0 52.80 55.20 52.80 55.20 6 7 4.0 4.0 7.0 7.0
M27 28.30 28.40 43.0 59.40 62.10 59.40 62.10 6 7 4.0 4.0 7.0 7.0
M30 31.45 31.55 46.5 66.00 69.00 66.00 69.00 7 8 4.0 4.8 7.0 7.5
M36 37.75 37.85 56.0 79.20 82.80 79.20 82.80 8 9 4.8 4.8 7.5 7.5
