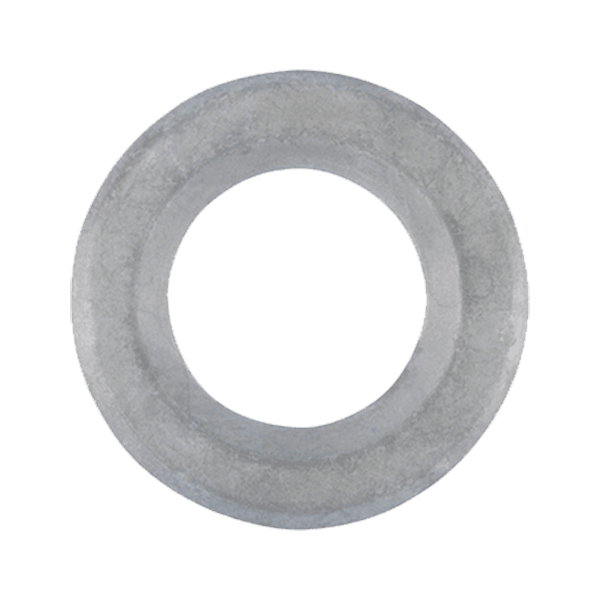

EN 14399 -9 HN washer

Technical specifications

  • Materials: 65MN/45#/40Cr
  • Finish: Zinc Plated/Black/Hot dip galvanized
  • Size: M12-M36



FEATURES



EN 14399 -9 HN washer

Description:

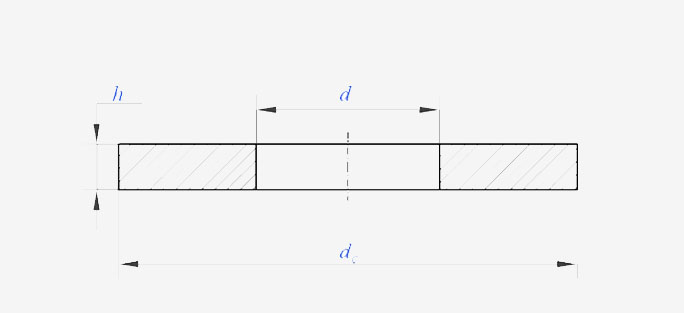

Size d dc h
  Min Max Min Max Min Max
M12 12.1 12.35 22.7 24 2.7 4.3
M16 16.1 16.35 27.7 29 3.7 4.3
M20 20.1 20.4 34.4 36 3.7 4.3
M22 22.3 22.6 37.4 39 3.7 4.3
M24 24.2 24.5 41.4 43 3.7 4.3
M27 27.2 27.55 46.4 48 4.4 5.6
M30 30.2 30.55 50.1 52 4.4 5.6
M36 36.2 36.55 60.1 62 5.4 6.6
